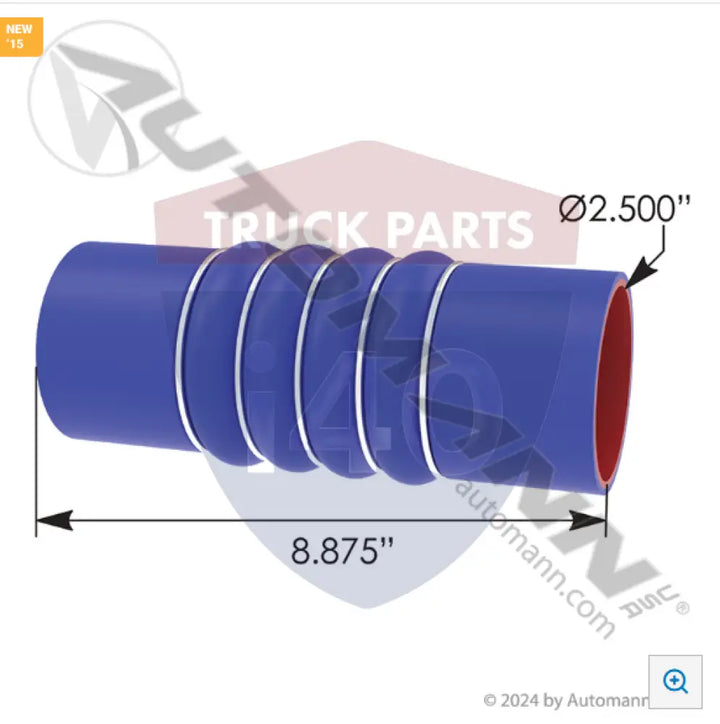

Part number F506308 is the Coolant Hose Upper Ken-Pete For Peterbilt from Automann. Product details include Poly, Coolant Hose 5 Ring; 2-1/2in ID; 2008-22 C500, T170, T270, T370, T660,T680, T700, T800, W900, W990 and Pete 320, 335, 337, 340, 348, 365, 367, 384, 386, 387, 388, 389, 567, 579, 587. It is intended for Kenworth, Peterbilt applications. The listed weight is 1 lb.
Product Details
| Part Number | F506308 |
|---|---|
| Brand | Automann |
| Product Level | Fleet Standard |
| Product Description | Poly, Coolant Hose 5 Ring; 2-1/2in ID; 2008-22 C500, T170, T270, T370, T660,T680, T700, T800, W900, W990 and Pete 320, 335, 337, 340, 348, 365, 367, 384, 386, 387, 388, 389, 567, 579, 587 |
| Applications | Kenworth, Peterbilt |
| Unit Size | 1 |
| Weight | 1 lb |
| Package Dimensions | 8.875 X 2.875 X 2.875 in |
Specifications
| Specification | Details |
|---|---|
| EPDM/Silicone | Silicone |
| Hose Type | Hump Hose |
| Kit (Yes/No) | No |
| Reinforcement | 4 ply polyester |
| Usage | Cold Side CAC |
| Make | Kenworth, Peterbilt |
| ID (Side A) | 2.500" |
| ID (Side B) | 2.500" |
| Centerline Length Long Side | 8.875" |
| OEM # | Peterbilt(F506308), Gates(28359) |
Fitment
| Make | Series | Additional Information |
|---|---|---|
| Kenworth | C500 (No Year) | |
| Kenworth | T170 (No Year) | |
| Kenworth | T2000 (No Year) | |
| Kenworth | T270 (No Year) | |
| Kenworth | T400 (No Year) | |
| Kenworth | T440 (No Year) | |
| Kenworth | T470 (No Year) | |
| Kenworth | T660 (No Year) | |
| Kenworth | T680 (No Year) | |
| Kenworth | T700 (No Year) | |
| Kenworth | T800 (No Year) | |
| Kenworth | T880 (No Year) | |
| Kenworth | W900 (No Year) | |
| Peterbilt | 335 (No Year) | |
| Peterbilt | 337 (No Year) | |
| Peterbilt | 340 (No Year) | |
| Peterbilt | 348 (No Year) | |
| Peterbilt | 365 (No Year) | |
| Peterbilt | 367 (No Year) | |
| Peterbilt | 384 (No Year) | |
| Peterbilt | 386 (No Year) | |
| Peterbilt | 387 (No Year) | |
| Peterbilt | 388 (No Year) | |
| Peterbilt | 389 (No Year) | |
| Peterbilt | 567 (No Year) | |
| Peterbilt | 579 (No Year) | |
| Peterbilt | 587 (No Year) | |
| Kenworth | T170 (Unspecified.) | |
| Kenworth | T470 (Unspecified.) | |
| Peterbilt | 388 (Unspecified.) | |
| Peterbilt | 567 (Unspecified.) | |
| Peterbilt | 337 (Unspecified.) | |
| Peterbilt | 348 (Unspecified.) | |
| Peterbilt | 340 (Unspecified.) | |
| Kenworth | T440 (Unspecified.) | |
| Kenworth | C500 (Unspecified.) | |
| Peterbilt | 367 (Unspecified.) | |
| Kenworth | T400 (Unspecified.) | |
| Kenworth | T660 (Unspecified.) | |
| Kenworth | T800 (Unspecified.) | |
| Peterbilt | 386 (Unspecified.) | |
| Kenworth | T700 (Unspecified.) | |
| Kenworth | T2000 (Unspecified.) | |
| Peterbilt | 384 (Unspecified.) | |
| Peterbilt | 387 (Unspecified.) | |
| Peterbilt | 335 (Unspecified.) | |
| Peterbilt | 389 (Unspecified.) | |
| Peterbilt | 365 (Unspecified.) | |
| Kenworth | T680 (Unspecified.) | |
| Kenworth | T270 (Unspecified.) | |
| Kenworth | T880 (Unspecified.) | |
| Kenworth | W900 (Unspecified.) | |
| Peterbilt | 579 (Unspecified.) | |
| Peterbilt | 587 (Unspecified.) |
Related Products
| Automann Part Number | Product Name |
|---|---|
| 561.75638K | Coolant Hose Kit Upper Ken-Pete |
